Fully containerized prefabricated building with a double-stacked structure, divided into 4 functional zones

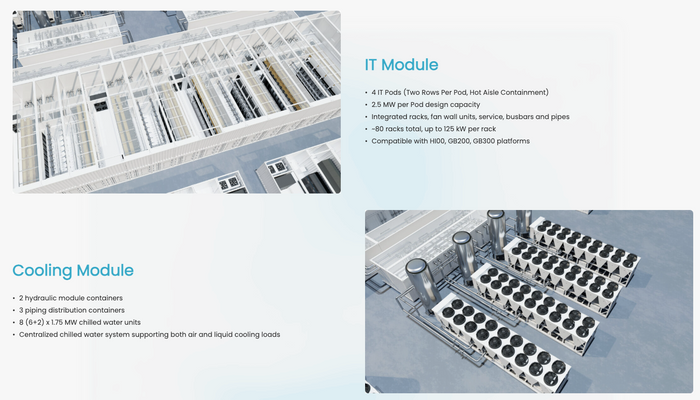

Data Hall: housing GB300 SUs and 2 MMR rooms. GB300 SUs adopt a closed hot-aisle containment design — air cooling via wall-mounted AC units, liquid cooling heat dissipation via DTC.

Office & Functions Zone: Includes an entrance lobby, fire suppression cylinder room, monitoring room, offices, loading/unloading platform, and restrooms.

Cooling: Includes Outdoor chillers, hydraulic modules, buffer tanks serve both air-and-liquid-cooled systems (shared cooling unit optional). Chiller units and hydraulic modules can be installed at ground level or on the rooftop above the IT rooms.

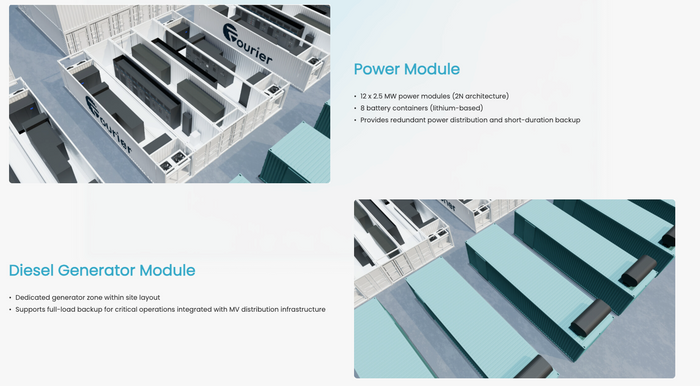

Power Modules: composed of power modules and diesel generators. Each includes 1 transformer cabinet, 1 low-voltage distribution cabinet, and 1 lithium battery cabinet. Power modules are configured separately for IT loads and infrastructure loads and sized according to different rack requirements.
