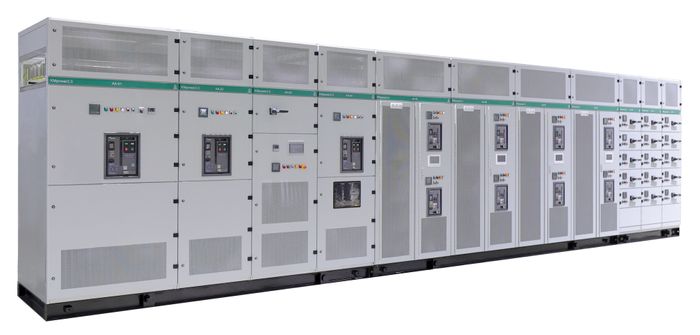

Pre-engineered Integrated Design: A standardized architecture with factory prefabrication and testing helps shorten the project delivery cycle by approximately 20%.

Compact and Uniform Layout: The removable busbar compartment and integrated transport design reduce the installation cycle to only 30%-50% of that required by traditional solutions.

Space Saving: The integrated design from transformer to feeder saves approximately 15% of floor space compared with conventional layouts.

Optional Full-Link Copper Busbar: Provides improved heat dissipation and longer service life.

High-Efficiency UPS: Features double-conversion efficiency above 97.3%, hot-swappable power modules, intelligent module sleep, on-demand charge/discharge control.

Hot-Sync Wireless Parallel Technology: Requires no communication cables, eliminating a single point of failure. Supports parallel operation of up to 8 units with low load imbalance, and has been proven in hundreds of thousands of installations worldwide.

AC Direct Feed: Provides 0 ms transfer for immediate isolation from grid disturbances, along with harmonic and surge filtering, lightning detection, intelligent fault diagnosis, and support for parallel operation.

Flexible System Construction: Available in MNS2.0 configuration with front/rear busbar arrangement and 2300 mm height, or as a simplified option with UPS integral isolator and 7180 mm length.

Accessible Busbar Compartment: A separate busbar compartment allows easier on-site installation and maintenance.

Wireless Temperature Monitoring: Real-time temperature monitoring is available at all busbar joints, including top busbars, transformer connections, UPS connections, and feeder connections.

Smart Power Quality Management: Provides full-link visualization, real-time monitoring, fault localization, and modular monitoring through RS485 with an integrated color touchscreen.
