PRODUCT HIGHLIGHTS

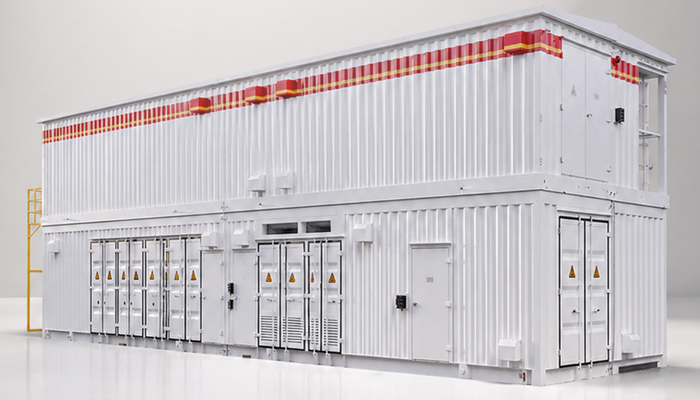

Robust Enclosure

An integral steel structure provides excellent mechanical strength and protection up to IP54.

Composite Wall System

A three-layer wall construction consisting of an external corrugated steel sheet, rock wool insulation, and an internal decorative panel delivers strong fire resistance, thermal insulation, and sound attenuation.

Weatherproof Roof

A beam-supported, asphalt-coated roof ensures reliable waterproof performance.

Professional Cable Management

Cables are arranged in segregated layers according to type and voltage level, ensuring a safe, reliable, and compact layout.

Integrated Auxiliary Systems

Heating, cooling, ventilation, lighting, fire alarm, and monitoring systems are pre-installed and factory-tested.

Enhanced Safety Features

Fire-rated doors are equipped with emergency escape locks. Maintenance walkways use anti-static or insulating flooring. Operating platforms are fitted with safety ladders, handrails, and guardrails.

Transportation-Optimized Design

The unit is designed for complete transformation and hoisting as a single module. The structure can withstand transport stresses and can also be engineered to meet oversized load requirements.

Flexible and Scalable

The modular design supports a variety of layout configurations and allows for future expansion.



CONVENTIONAL CONFIGURATION

1. Main Electrical Equipment

· MV switchgear (e.g., GIS, metal-clad) up to 40.5kV

· Power and distribution transformers

· LV distribution panels and motor control centers (MCC)

· MV and LV variable frequency drive (VFD) cabinets

· Power factor correction and harmonic filter cabinets

· Control and protection relay panels

· Integrated SCADA, power monitoring system, and PLC

· UPS and DC battery systems

· Other functional cabinets

2. Internal Auxiliary Systems

· HVAC system (heating, ventilation, and air conditioning)

· Comprehensive lighting system (indoor, outdoor, and emergency lighting)

· Fire detection and alarm system (smoke detectors, sound/light alarms, and manual call points)

· SF6 gas density monitoring system for compartments containing SF6 equipment)\

· Portable CO2 fire extinguishers

· Auxiliary distribution boards for lighting, sockets, HVAC and other internal loads
