DCI-3600 is a stackable high-speed WDM transmission platform customized for data center interconnection (DCI) applications. This product has large transmission capacity, small size and fully meets the requirements of the data center computer control room. It has low power consumption and convenient operation & maintenance. It is not only suitable for the short distance service interconnection between data centers, but also suitable for the long-distance service transmission of the backbone network between data centers.

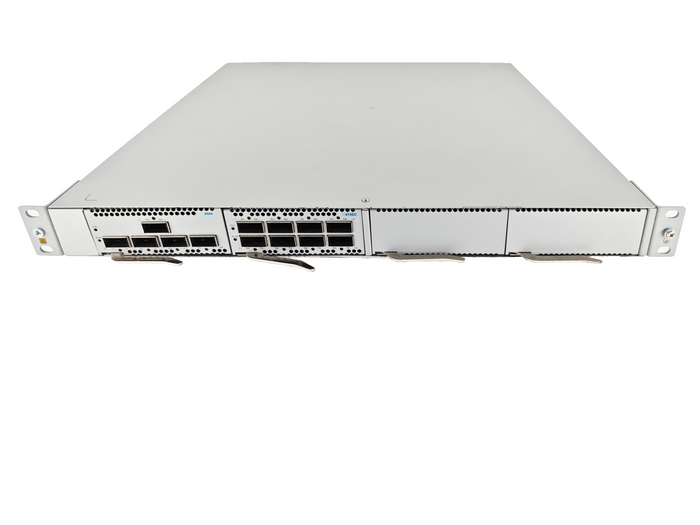

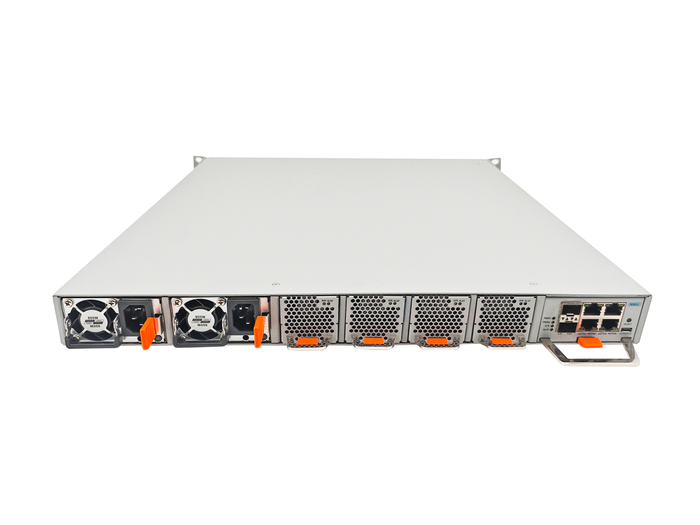

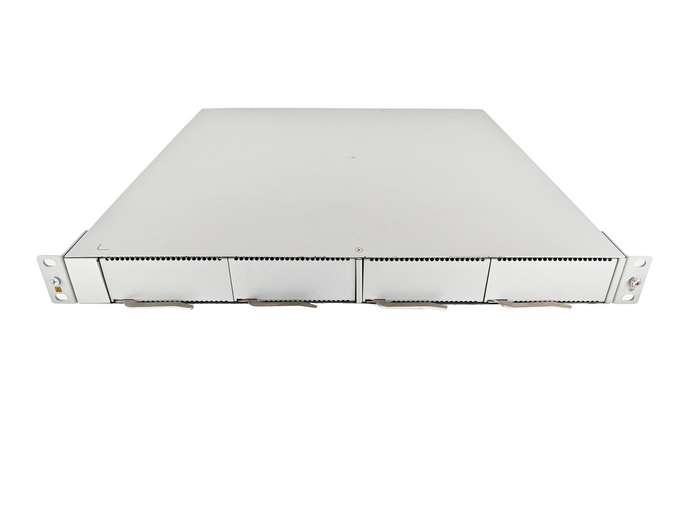

DCI-3600 is a 1U/2U chassis, and the electrical layer supports 200G/400G service cards; The optical layer supports WSS, EDFA, OMU/ODU, VMUX, OLP, OTDR, OCM, TFF, etc; Based on the open software architecture, it provides various open interfaces, so that its management mode can be easily integrated with the equipment management system of the data center, reducing the difficulty of daily equipment maintenance, and providing a strong guarantee for the rapid growth of data center service. The DCI3200 has a large transmission capacity, small size, and fully meets the requirements of the data center computer control room. It has low power consumption and convenient operation & maintenance. The front panel provides optic fiber connections for customer interfaces and line interfaces, and supports single card hot swapping for easy maintenance. The rear provides power supply access and fans. The equipment adopts standard server power supply, supports DC-48V/AC 220V power supply/high-voltage DC, and supports 1+1 protection for the main control card and 1+1 protection for the power supply , as well as for fan 1+1 protection.
