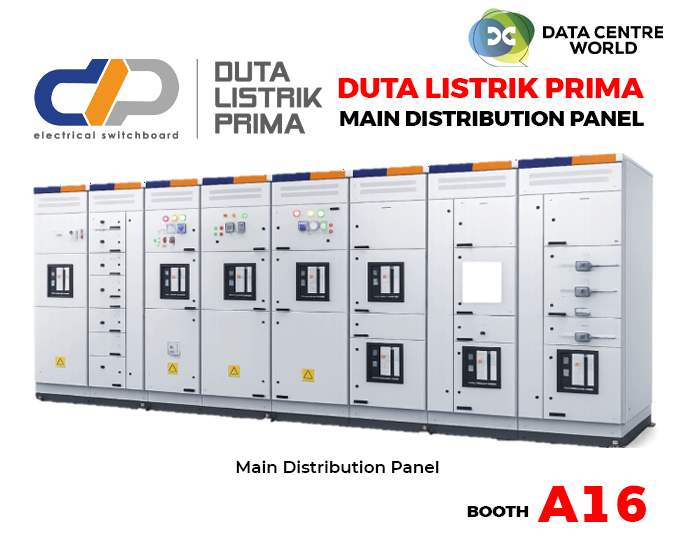

Duta Listrik Prima (DLP) Main Distribution Panels provide a robust and configurable solution for centralized electrical power distribution, switching, protection, and system integration. The range includes LVMDP for low-voltage systems and MVMDP for medium-voltage applications, allowing the panel configuration to be adapted to the electrical characteristics and operational requirements of each project.

LV Main Distribution Panel (LVMDP)

• Rated insulation voltage (Ui): up to 1,000 V; rated operating voltage (Ue): 415 V.
• Rated withstand voltage: 3 kV; rated frequency: 50 / 60 Hz.
• Busbar rated current: up to 6,300 A.
• Typical dimensions: height 2,000–2,200 mm; width 250–1,200 mm; depth 1,000 or 1,275 mm.
• Mild steel/galvanized steel construction with frame and door/entry plate 2.0 mm and internal partition 1.5 mm.
• Powder-coated enclosure with RAL 7035/732 finish.
• Ingress protection: IP4X (indoor), up to IP65 (outdoor).
• Available in Form 1, 2, 3, and 4 configurations.

MV Main Distribution Panel (MVMDP)

• Rated insulation voltage (Ui): up to 50 kV.
• Rated operating voltage: 20 kV, 7.2 kV, and 3.3 kV.
• Rated withstand voltage: 50 kV, 11 kV, and 6 kV; rated frequency: 50 / 60 Hz.
• Busbar rated current: up to 4,000 A.
• Typical height: 2,300 mm; width 800–1,200 mm; depth 1,000 or 1,275 mm.
• Mild steel/galvanized steel construction with frame 2.0 mm, door/entry plate 3.0 mm, and internal partition 2.0 mm.
• Powder-coated enclosure with RAL 7035/732 finish and IP4X protection.
