Performance and features:

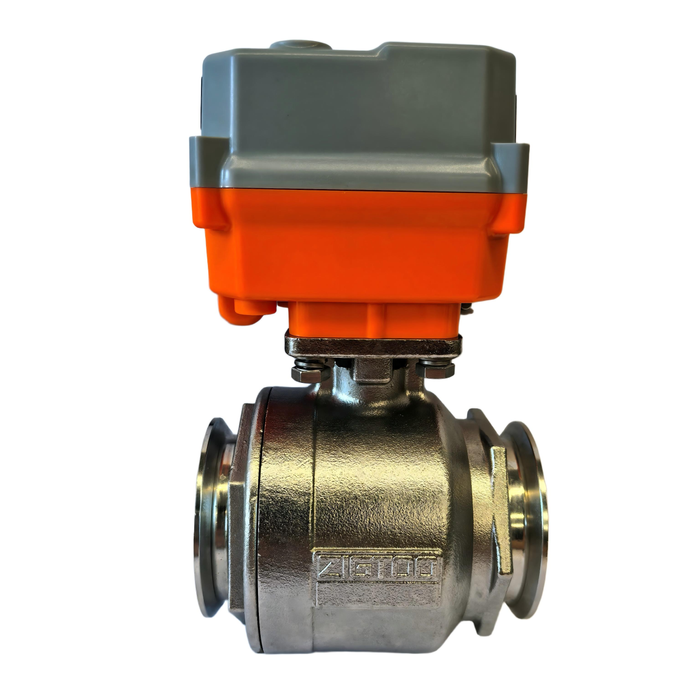

The A1003 series electric modulating ball valve consists of a 10–400 Nm electric actuator and an electric V-port ball valve body. It enables precise control of the flow rate of media within the system to achieve temperature and pressure regulation as well as energy savings.
Analog feature: After calibration, the device adjusts the valve position according to the input voltage signal;
1、Diameter: DN15...DN100; IP rating: IP54 or IP67;
2、Control mode: proportional control;
3、Flow characteristic: equal percentage
4、After signal loss, the valve can be set to open, close, or hold its current position;
5、The ball is a stainless-steel V-port ball with clamp connections, offering superior modulating performance;
6、The actuator is easy to install and remove, with simple wiring and maintenance;
