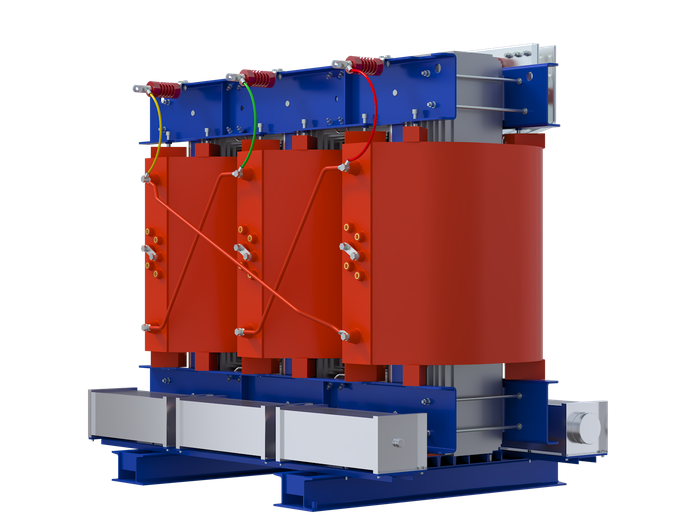

Energy-Saving Epoxy Resin Casting Dry-Type Power Transformer
)
PRODUCT HIGHLIGHTS
Low Loss: No-load and load loss values are lower than requirements specified in relevant energy efficiency standards, ensuring significant energy-saving effects.
Low Noise: Measured noise levels are far lower than limits defined by international and domestic standards, such as IEC and GB.
Low Partial Discharge: Measured value of partial discharge during product testing is below 5pC, indicating high insulation integrity and long operational lifespan.
High Reliability: Advanced process technologies, such as core lamination and vacuum resin casting, ensure enhanced operational reliability.
TECHNICAL PARAMETERS
|
Rated Capacity (kVA) |
Short-Circuit Impedance (%) |
No-Load Loss (W) |
Load Loss (W) |
Transformer Dimension (mm) |
Shell Dimension (mm) |
Rail Gauge (mm) |
|
Width × Depth × Height |
Width × Depth × Height |
d1 × d2 |
||||
|
30 |
4 |
105 |
685 |
830×500×688 |
1400×1200×2200 |
300×400 |
|
50 |
155 |
965 |
890×700×786 |
1400×1200×2200 |
400×600 |
|
|
80 |
210 |
1330 |
920×800×828 |
1400×1200×2200 |
400×700 |
|
|
100 |
230 |
1520 |
940×900×876 |
1400×1200×2200 |
400×800 |
|
|
125 |
270 |
1780 |
950×900×883 |
1400×1200×2200 |
400×800 |
|
|
160 |
310 |
2050 |
970×900×956 |
1400×1200×2200 |
400×800 |
|
|
200 |
360 |
2440 |
980×950×986 |
1400×1200×2200 |
450×850 |
|
|
250 |
415 |
2665 |
990×950×996 |
1400×1200×2200 |
450×850 |
|
|
315 |
510 |
3355 |
1050×1000×1013 |
1700×1300×2200 |
660×900 |
|
|
400 |
570 |
3850 |
1070×1000×1036 |
1700×1300×2200 |
660×900 |
|
|
500 |
670 |
4705 |
1180×1050×1079 |
1700×1300×2200 |
660×950 |
|
|
630 |
6 |
750 |
5760 |
1300×1100×1051 |
1900×1400×2200 |
660×1000 |
|
800 |
875 |
6715 |
1350×1100×1100 |
1900×1400×2200 |
820×1000 |
|
|
1000 |
1020 |
7885 |
1420×1100×1175 |
1900×1400×2200 |
820×1000 |
|
|
1250 |
1205 |
9335 |
1450×1200×1250 |
2200×1700×2200 |
820×1100 |
|
|
1600 |
1415 |
11320 |
1540×1200×1320 |
2200×1700×2200 |
820×1100 |
|
|
2000 |
1760 |
14005 |
1640×1200×1416 |
2200×1700×2200 |
820×1100 |
|
|
2500 |
2080 |
16605 |
1710×1300×1528 |
2200×1700×2200 |
820×1200 |
