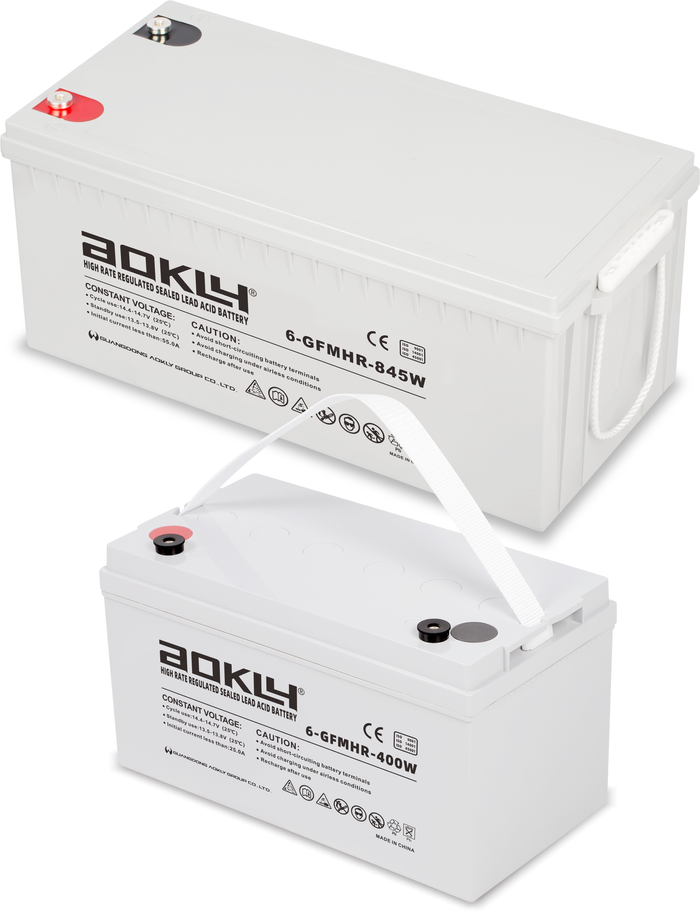

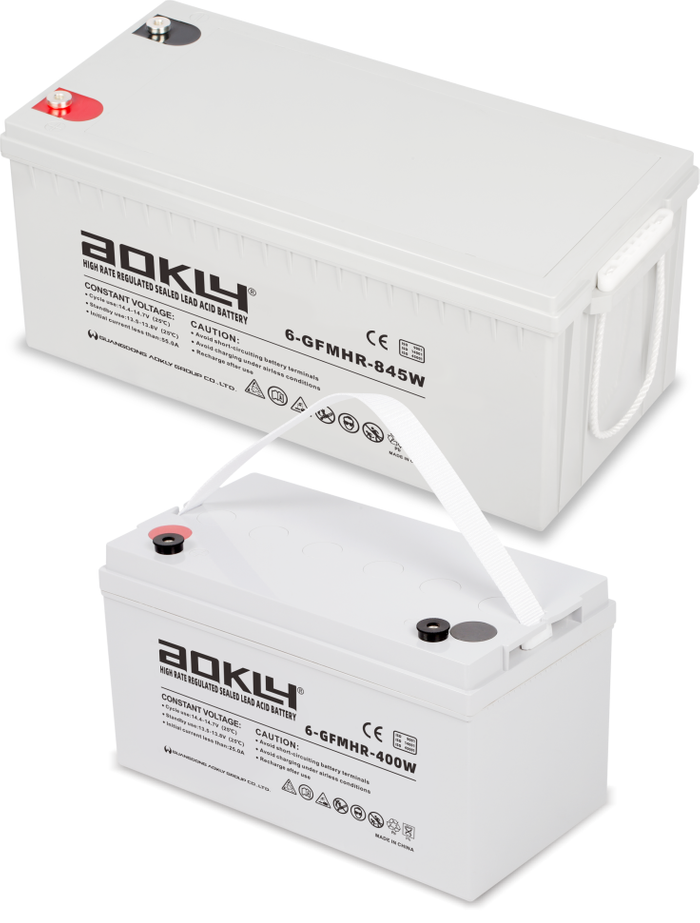

HIGH RATE VALVE REGULATED LEAD-ACID BATTERY
)
High Rate Series batteries adopt special lead paste and alloy formulas. The batteries have excellent high power discharge performance, high safety and reliability, and lower cost for the same configuration, and are mainly used in data centers, IDC rooms, UPS, high voltage DC, and other short time power backup application scenarios.
Product Features:
• Nominal power: 300W-1000W
• Nominal voltage: 12V
• Operating temperature range: -40°~ 50°C (optimal ambient temperature is 15°C ~ 25°C)
• Long design life (25°C): 10 years
• Self discharge: ≤3%/month
• Good high rate discharge performance
• High sealing reaction efficiency: ≥99%
• Structure: Compact design, lower internal resistance
• Plate: Pasted flat type
• Terminal: Two or more types terminals are convenient for selection, higher assembling pressure to increase deep cycle life
• Casing material: UL94V-0
• Terminal sealing: Double sealing technology (mechanical+ epoxy glue)
