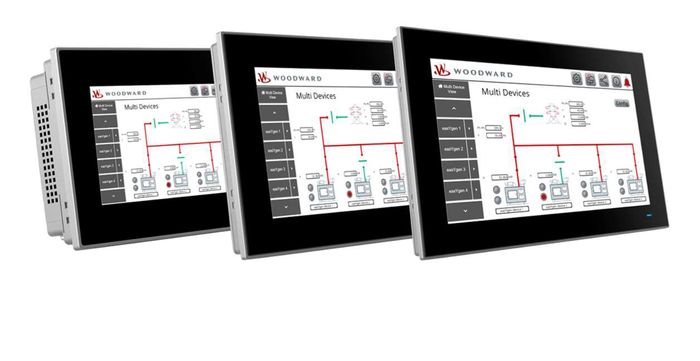

 Off-the-shelf easYview supports two operation modes,
 mini-SCADA – multiple easYgen-XT and/or LS-6XT connects via Modbus TCP connection. 4 each
controller type prepared for 7” model and 8 each prepared for 10” and 15” models.
 remoteHMI – VNC connection to single controllers. Depending upon the easYview screen size (7’, 10’
or 15’), 1, 2 or 4 different remote HMI screens can be shown simultaneously
 Engineered to achieve a range of customizations using tunables and online keyboard
 Further customization using atvise® SCADA tool under password protection (see AN#37949)
 PC mode to free the license from easYview Hardware and perform customizations using a PC
 VNC connection also supported in mini-SCADA mode for detailed visualization of single controllers
 Possible to connect multiple easYview to single controllers in remoteHMI mode
 List of available devices in network with a search filter option
 Auto connection setting to the last connected device(s)
 Customizable remoteHMI connection in full mode, annunciator mode or deactivate
 Neutral bezel and field replaceable Logos for customer branding (see AN#37946)
 Multi-lingual remoteHMI screens of the connected controller
