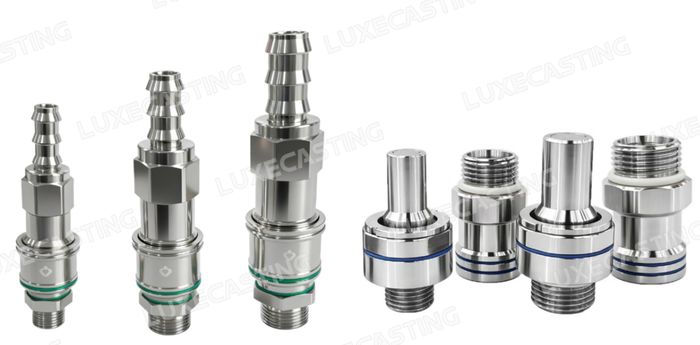

The TLOK-U UQD Liquid Cooling Quick Disconnect has been developed around the OCP UQD interface concept to support standardized liquid cooling architectures. Its double-sided flat-face self-sealing design provides:

• Tool-free, one-handed connection
• Low fluid loss during connection and disconnection
• Efficient coolant flow
• Reliable sealing performance

TLOK-U UQD is a quick-disconnect couplings standard developed within the OCP based on Intel's initiative. According to the TLOK-U UQD specifications, Luxecasting now offers four sizes: U-02, U-04, U-06, and U-08, which are capable of matching with UQD.

Application

Compatible Media: Deionized water, purified water, water-glycol, water-propylene glycol, fluorinated fluids, etc.

Thermal Management Applications: High-performance computing (HPC), data centers (AI infrastructure), network switches.

Technical data

Nominal flow diameter (inch)   : 1/4", 3/8”, 1/2", 5/8”

Max working pressure (bar)     : 10 bar

Main material   Stainless steel : SS304 (SS316 upon request)
