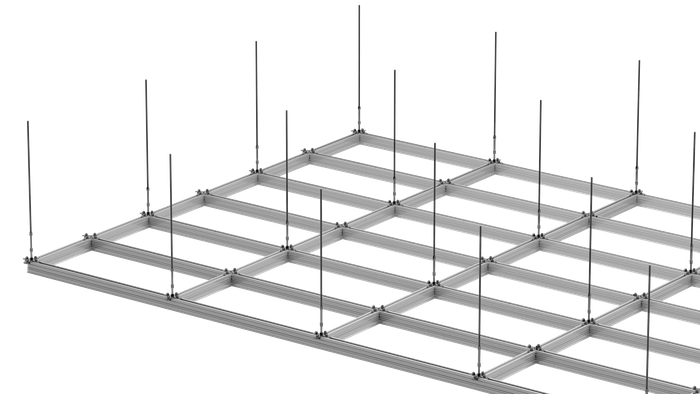

H Series Structural False Ceiling Grid
The H Series of Pro-Grid is a prefabricated structural aluminium ceiling grid designed
to support heavy overhead loads in data centres such as cable trays, power
modules, and lighting fixtures. With a continuous inverted double U-shaped profile
and a design factor of safety of 2, it has a high safe point load capacity of 500 kg and
a safe uniform load capacity of 700 kg/m². Because of its light weight and resistance
to corrosion, the grid can be assembled quickly and at a low cost, and at the same
time meets the seismic standards IS 1893:2025 and IS 16700.

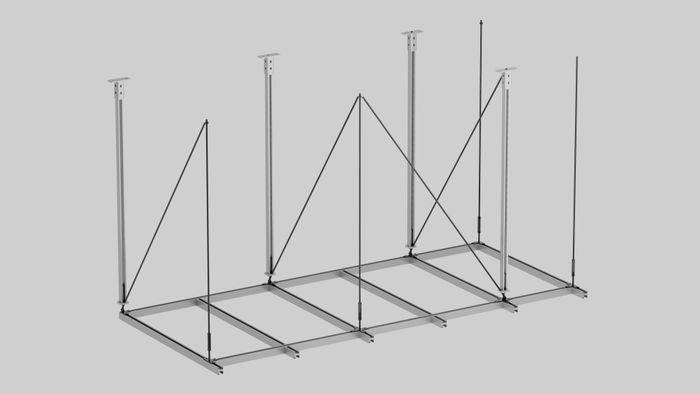

M Series Structural False Ceiling Grid
The Pro-Grid M Series is made up of special aluminium alloy extrusions and
provides a versatile, medium-duty overhead hanging system for use in white space
areas. It has continuous inverted double U-shaped flanges on either side and is
designed to take standard Unistrut hardware (sizes M6 to M12) for mounting the
utilities. The grid can safely carry a point load of 250 kg and a uniform load of
500 kg/m² metre, and it includes seismic bracing, quick assembly features, and is
compatible with dust-free, fire-retardant non-metallic or insulated metal fill-in tiles
