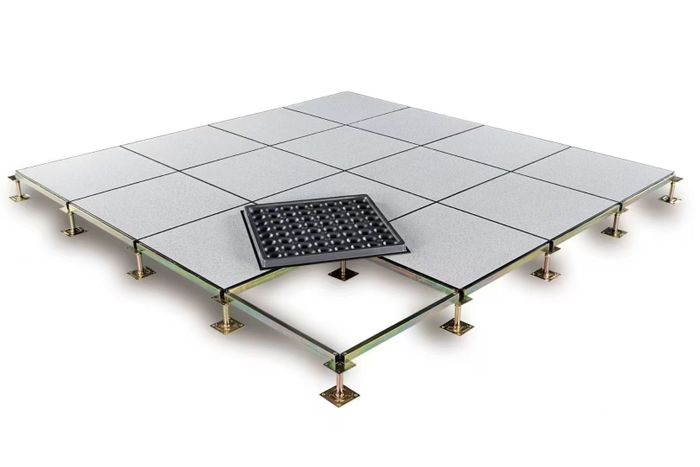

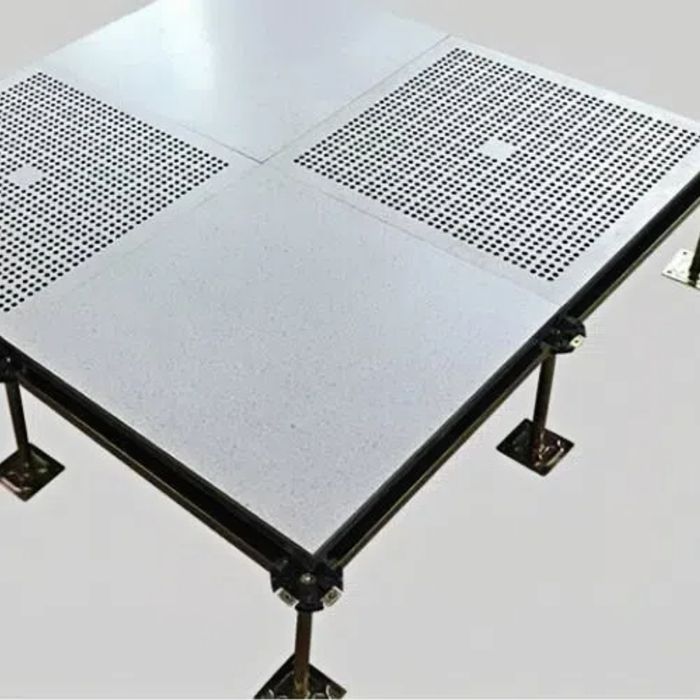

1.Anti-Static Raised Floor

Anti-Static Raised Floor also known as electrostatic dissipative (ESD) flooring, is a modular floor system assembled from adjustable pedestals, stringers, and panels. A void space exists between the subfloor and the raised floor, facilitating cable routing and air supply. When grounded or connected to a lower potential point, this flooring enables electrostatic discharge, characterized by an electrical resistance ranging from 10⁵ to 10⁹ ohms (Ω).

Anti-Static Raised Floor is typically categorized based on its core substrate and surface material:

Core Substrates:Steel core/Aluminum core/Wood core/Calcium sulfate core

Surface Materials: Anti-Static Ceramic Tiles/High-Pressure Laminate (HPL)/PVC/Vinyl

Applications: Data Centers, Laboratories, Telecommunications, Electronic Manufacturers,Computer Centers, Clean Rooms, Server Rooms, Operating Rooms, Control Rooms, etc.

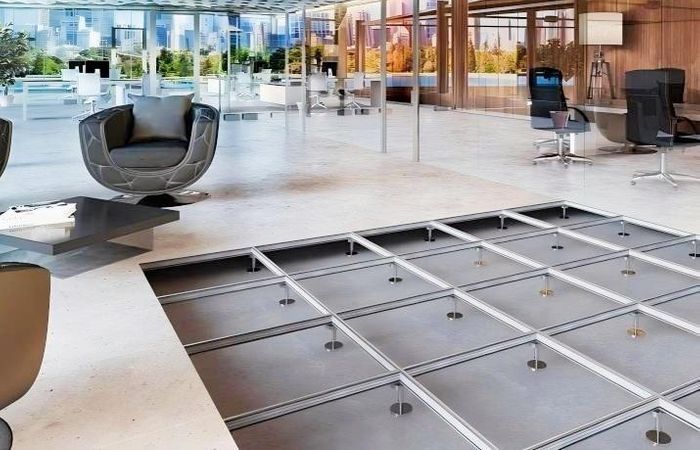

2.OA Raised Floor

Office raised flooring, also known as elevated flooring or access flooring, is a floor system commonly used in offices and commercial buildings. It consists of liftable modular panels that create a void space beneath them. This cavity accommodates cabling, piping, and other infrastructure, providing flexibility and convenience for future maintenance and modifications.

The system includes pedestals, screws, and connectors to secure and assemble the components. Pedestals are designed to support the panels and provide height adjustment functionality.

OA Raised Floor’s panel is bare, without any laminated finish on the surface,typically categorized based on its core substrate :Steel/Calcium sulfate/Wood/GRC/Glass

After installation, carpet tiles are typically laid over the flooring.

Applications: Grade 5A smart buildings/Commercial Buildings/Class A office buildings/OA offices/Open-plan offices/Building renovations/Industrial retrofits



3.GRC Cement Raised Floor

Model: LD607

Size: 500*500*26mm

Fire Performance: A1fl class

Concentrated Load: 300kg/450kg

Description: GRC cement flooring, primarily composed of Portland cement, is integrally formed through single compression molding after thorough mixing with steel mesh and reinforcing fibers. This significantly reduces metal consumption, conserves energy, and enables full recyclability. The material demonstrates exceptional environmental compatibility, offering corrosion resistance, wear resistance, flame retardancy, and dimensional stability.

Applications: commercial office buildings, prefabricated radiant floor heating systems, and modular hotel/apartment projects.





4.Glass Raised Floor

Model: LD600

Size: 600*600*12mm/600*600*20mm

Fire Performance: A1fl class

Concentrated Load: 200kg

Description: The tempered glass adopts double tempering and double emulsification technology,combined with a high-strength steel perimeter frame, delivers exceptional load-bearing capacity and durability. This system integrates with pedestals and stringers to form a complete raised floor system. Compatible with anti-static flooring, it enables real-time visual inspection of subfloor components,such as equipment, cable routing, instrumentation or valve operation status.

Applications: Data Centers / Museum / Exhibition Hall / Computer Rooms / Control Rooms /Clean Rooms / Electronics Manufacturing Facilities
