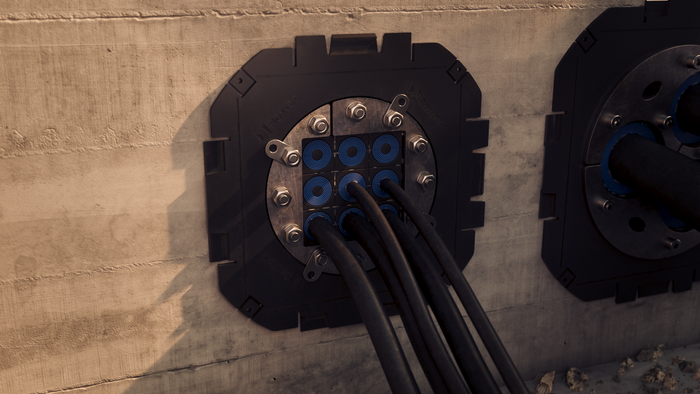

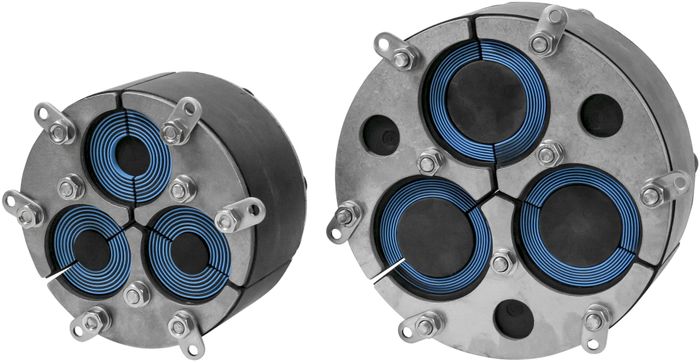

Roxtec H3 UG™ seal for cables or pipes in trefoil formation. Manufactured from Roxylon™ UG EPDM rubber with Multidiameter™, the Roxtec solution for sealing around cables and pipes with removable layers in 1 mm increments.

• IP 68 tested and certified for constant water pressure to 0.5bar and catastrophic pressure to 1bar
• Can be installed in running water conditions
• Roxylon™ EPDM rubber is halogen free and fulfils RoHS and REACH directives. Shown not to contain any conflict minerals
• Fittings manufactured from non-magnetic acid proof stainless steel. Minimum clearance of 3mm between rubber and metal fittings to prevent direct contact between the cable and any metal components
• Fasteners should be made out of non-magnetic acid proof stainless steel (minimum class A4-70)
• Fully split design for easy installation
• Installation compression indicator window
• Gas tight to 0.3bar
• Prevents ingress from water, gas, dust and vermin
• Cable retention with a pull force in the range of 2200-3300N and a weight load of up to 336kg, depending on size
• Rubber depth minimum 60mm
