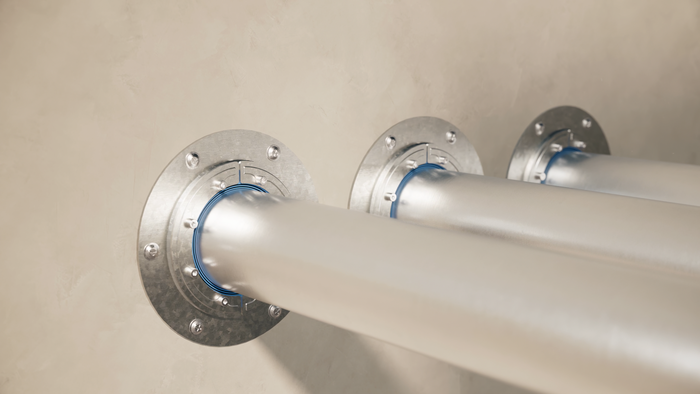

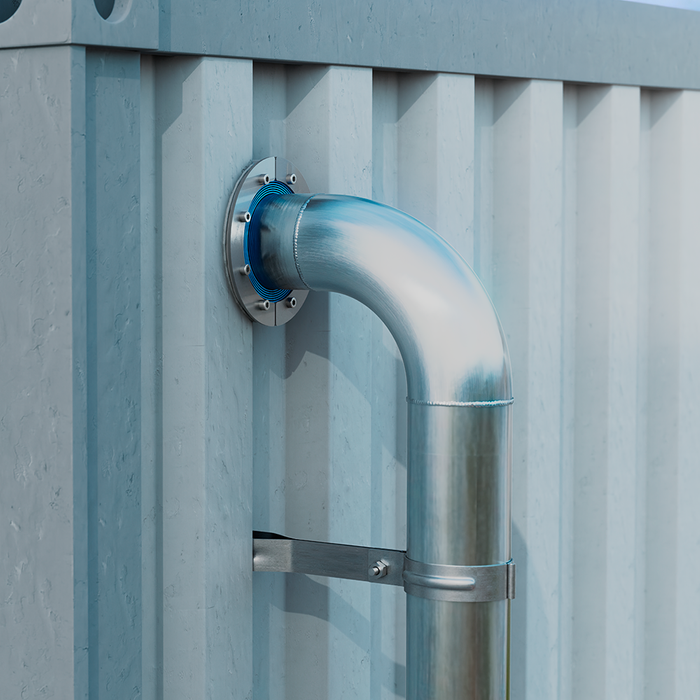

Penetration seal for a single cable or pipe. The Roxtec RS is a seal for single cables or pipes in metal sleeves or existing holes. The entry seal has two halves with removable layers making it adaptable to cables and pipes of different sizes. The design of the transit makes it easy to install around existing cables or pipes.

• Rodent resistant
• Quick and easy to install,

Ratings & certificates

Fire

• A-CLASS according to IMO 2010 FTP Code
• E/EI rating according to EN 13501
• E/EI rating according to EN 45545 E30
• F/T rating according to UL 1479
• H-CLASS according to IMO 2010 FTP Code + HC fire load curve
• Jet fire according to ISO 22899-1 and OTI 95634

Tightness

• Gas: 2.67 bar (catastrophic)
• Water: 4 bar (catastrophic)
• IP 68, UL/NEMA 4,4X,12,13
