Sanitary ball valves are used for material transfer pipelines in food, beverage, pharmaceutical and fine chemical industries. The full bore structure provides low fluid resistance, suitable for viscous media and media with solid particles.
Nominal diameter: DN15-DN100, pressure rating: 16 bar. Temperature range: -10~+150℃ for PTFE seal; -10~+180℃ for PPL seal.
Media wetted material: 304, 316, 316L stainless steel. Seal options: PTFE, PPL.

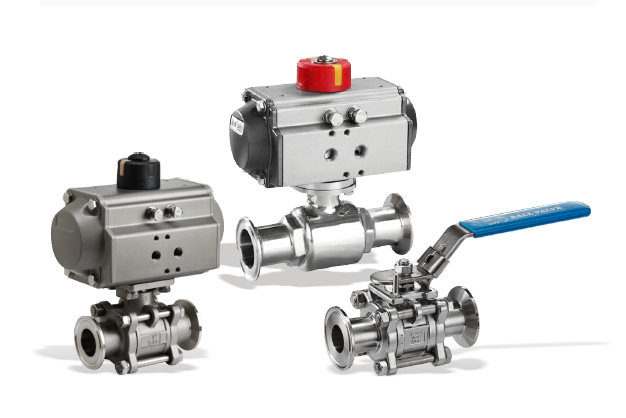

2-piece and 3-piece construction available, with half-lined or full-lined seats. End connections: clamp and weld. Actuation: manual or pneumatic actuator. Engineering drawings and dimension sheets are provided for selection and fabrication.
