Sanitary butterfly valves are widely used in food, beverage, dairy, pharmaceutical, bioengineering, fine chemical and water treatment sectors. It delivers high flow capacity, lightweight structure and low fluid resistance without material accumulation.
Nominal diameter: DN15-DN200, body pressure rating:16 bar, max working pressure:8 bar, operating temperature: -10~+150℃.
Media wetted material:304,316,316L stainless steel.

Seal options: EPDM, food-grade silicone.

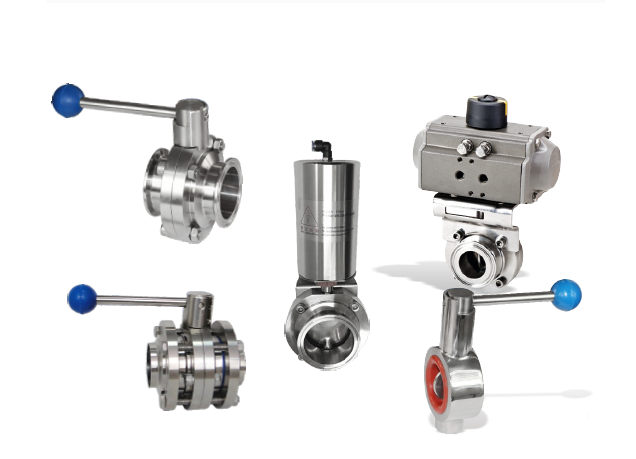

Includes standard manual butterfly valve and 3-piece butterfly valve. The 3-piece version allows on-site seat replacement for heavy-wear service. Compliant with SMS & 3A standards.

End connections: weld and clamp.

Actuation: manual, horizontal/vertical pneumatic actuator or electric actuator. Actuator selection table available.
