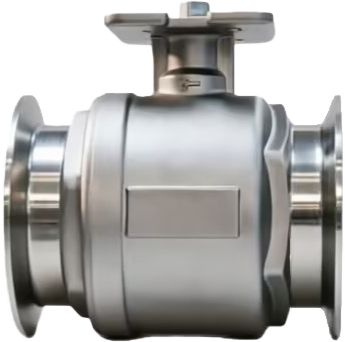

Full 304 Stainless Steel Construction：Valve body, bonnet, ball, and stem are all manufactured from304 stainless steel, offering excellent corrosion resistance and extended service life.Compatible with a wide variety of refrigerant and coolant media.
Clamp-Type Quick-Connect Ends：ISO 2852 / DIN 32676 compliant, tool-free installation and removal.
Equal-Percentage Flow Characteristic：Conforms to VDI 2178, turndown ratio ≥100:1, precise low-flow control.
Sealing：PTFE-reinforced seats + EPDM/FKM(optional) O-rings,Meets EN 12266-1 Rate A (new), Rate D after 100,000 cycles.
Wide temperature range：–18°C to +120°C media temperature. Compatible with water, ethylene glycol(≤60% vol.), DI water, hydrocarbon oils, and fluorocarbon fluids.
Long-life design：100,000 full-stroke cycles ( 3.5 BAR DP).
