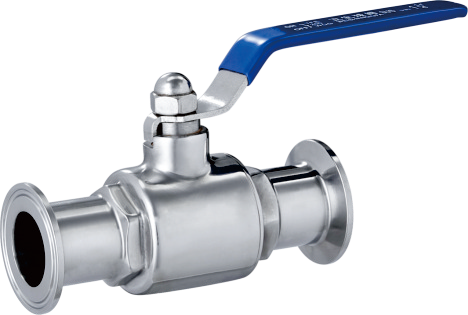

Straight ball valves generally consist of a handle,a ball with a through-bore,valve body,valve core,and shaft seals.
This series is available in various standard versions for customers,including DIN,3A,SMS,ISO/IDF,BS/RJT,and ASME
BPE standards.
1、 Nominal diameter:Ø19 …Ø102 (For other sizes,please consult ZIGTOO representative.)
2、 Steel parts:SUS304,SUS316L,etc.
3、Seals:EPDM,PTFE,FKM,etc.;Temperature range:-20℃~130℃
4、  Connections:DIN,SMS,3A,ISO series,etc.
5、 Pressure range:0-1.0 MPa,0-1.6 MPa
