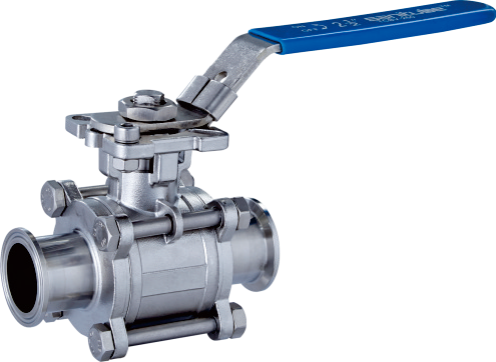

The 3-piece ball valve features a full bore and full encapsulated design,which greatly reduces fluid resistance and residue,
making it an ideal choice for vacuum applications or viscous fluid handling.
With its full encapsulated design,zero dead leg,and high cleanliness,the valve meets CIP and SIP sterilization and cleaning
requirements.
The self-compensating seal design offers low operating torque and long service life,with normal opening and closing of more
than 100,000 cycles.
A 3-piece ball valve generally consists of a handle,a ball with a through-bore,valve body,valve core and shaft seals.
This series is available in various standard versions for customers,including DIN,3A,SMS,ISO/IDF,BS/RJT,and ASME
BPE standards.
1、 Nominal diameter:Ø13 ...Ø76 (For other sizes,please consult ZIGTOO representative.)
2、 Steel parts:SUS304,SUS316L,etc.
3、 Seals:EPDM,PTFE,FKM,etc.;Temperature range:-20℃~130℃
4、Connections:DIN/SMS/3A/ISO series,etc.
5、 Pressure range:0-1.6MPa,0-1.6MPa
