TLOK-C is innovative locking mechanism also improves process stability by maintaining a consistent internal flow profile and reducing pressure losses.

TLOK-C is particularly suited to liquid cooling systems and demanding hygienic process applications where reliability, safety, and ease of maintenance are essential.

Key Features

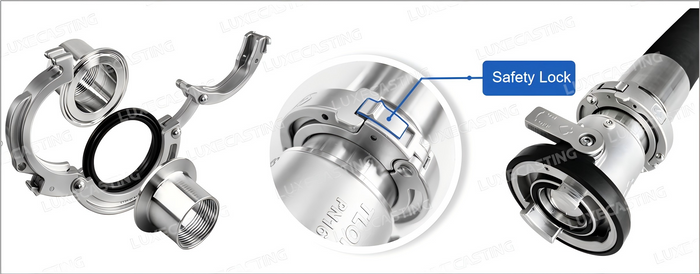

1. Quick Lever Locking Mechanism

• Replaces conventional bolted clamp connections.
• Enables fast, tool-free installation and removal.
• Eliminates the risk of thread damage and removes the need for torque adjustment.

2. Optimized Gasket Compression

• Automatically provides optimal gasket compression.
• Prevents both over-compression and insufficient compression.
• Ensures reliable sealing performance while minimizing flow restriction.

3. Automatic Self-Locking Design

• Automatically locks in place after installation.
• Provides excellent resistance to vibration.
• Prevents accidental loosening during operation, enhancing system safety.

4. Compact and Streamlined Design

• Compact, clean and hygienic design.
• Requires minimal installation space.
• Ideal for installations where space is limited.

5. Wide Range of Applications

• Compatible with standard sanitary Tri-Clamp connections.
• Suitable for both standard and high-pressure process systems.

6. Industry Compliance

• Designed in accordance with ASME BPE requirements.
• Suitable for hygienic process systems designed to meet.

Applications

• Liquid Cooling Systems
• Food & Beverage
• Pharma & Biomedical
• Chemical Industrial
• Operational Video

Benefits

• Faster installation and maintenance
• Reduced downtime
• Improved process safety
• Consistent sealing performance
• Lower maintenance costs
• Tool-free operation

Size          : 1"/ 1.5"/ 2"/ 2.5"/ 3"/ 4"

Material    : Stainless Steel 304

Optional   : Stainless Steel 316
