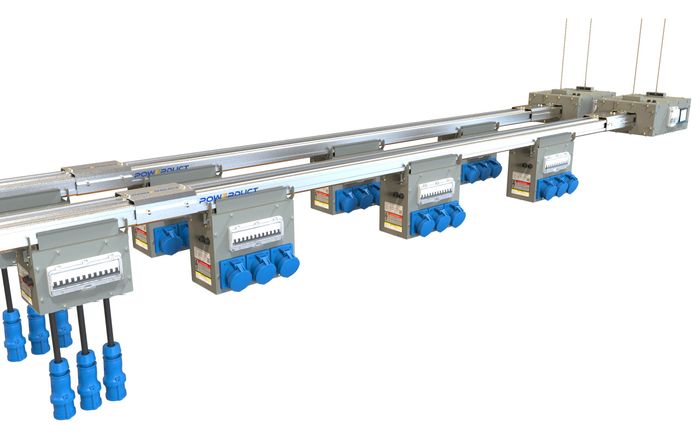

1. Powerduct® Compact Busway

• Purpose: Space-saving, lightweight busway for medium to low current loads.

• Current Capacity: 100 A, 160 A, 250 A.

• Voltage Rating: Up to 690 VAC.

• Construction: Steel housing with flame-retardant insulation materials.

• Protection: IP40 or IP55 suitable for indoor commercial or light industrial use.

• Applications: Offices, retail malls, light manufacturing, data rack power distribution.​

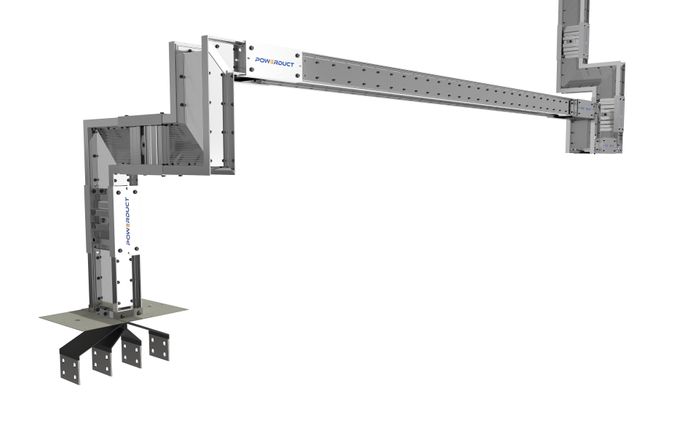

2.​Powerduct® Sandwich Busway

• Purpose: Heavy-duty power distribution for high current applications.

• Current Capacity: 225 A up to 6,300 A (copper), and up to 5,000 A (aluminum).

• Voltage Rating: Up to 1,000 VAC.

• Construction: Enclosed busbars insulated with epoxy resin and Mylar, housed in extruded aluminum casing with cooling fins.

• Protection: IP40 indoor standard; options up to IP67/IP68 for harsh environments.

• Applications: Large industrial facilities, data centers, infrastructure projects needing reliable and expandable power delivery.

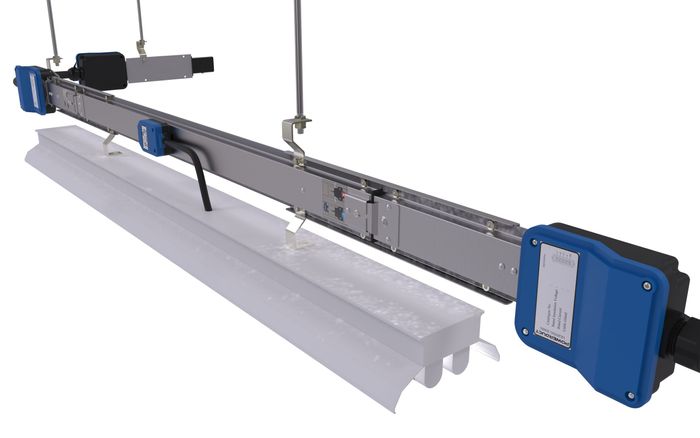

3. Powerduct® Lighting Series

• Purpose: Dedicated busway system for lighting power distribution.

• Current Capacity: 25 A and 40 A.

• Voltage Rating: Up to 1,000 VAC.

• Construction: Flameproof insulation within extruded aluminum housing.

• Protection: IP55 for indoor and semi-outdoor use.

• Applications: Commercial lighting in malls, parking areas, public facilities.
