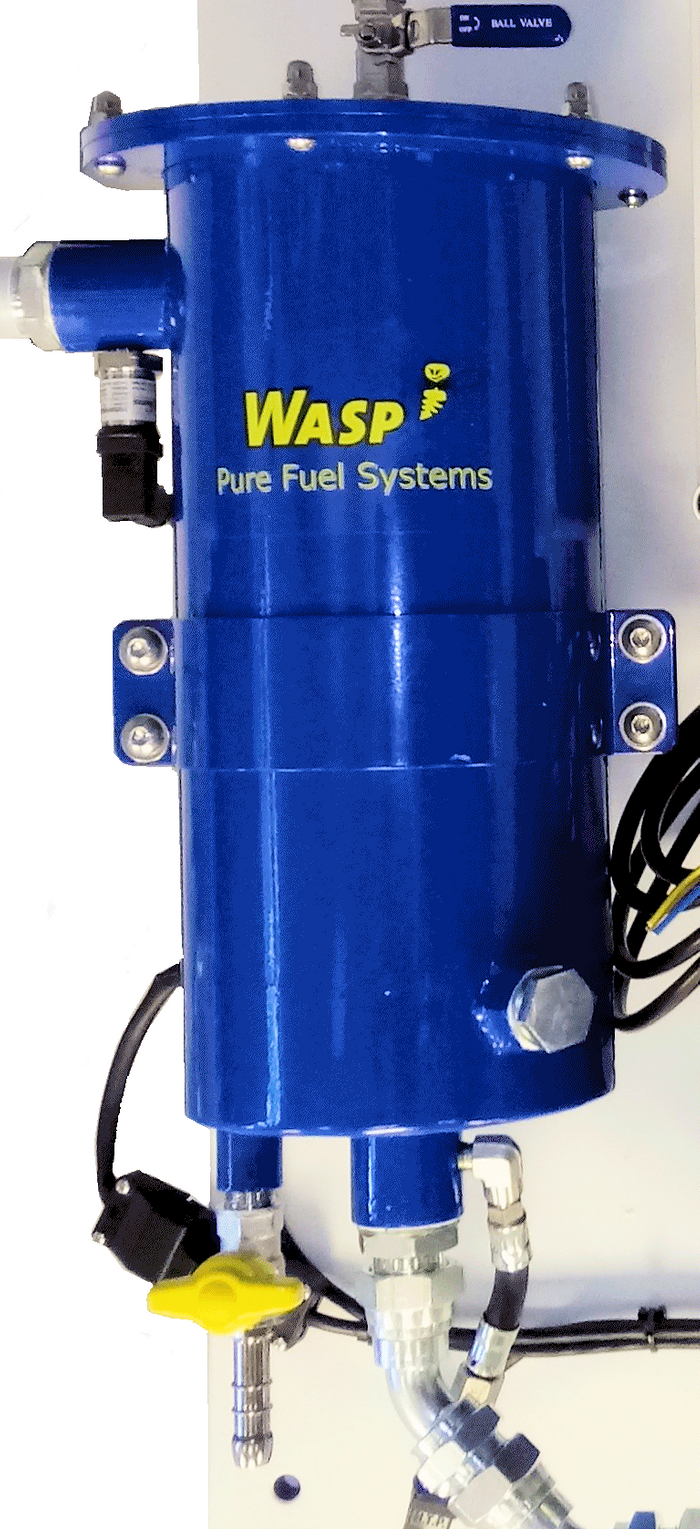

The WASP W-FCF range is engineered for secondary, engine-stage, or final-stage polishing applications where ultra-clean fuel quality is vital. Designed for EN590 diesel, gas oil, and Marine Diesel Oil (MDO), these high-efficiency units protect modern engines and fuel systems from microscopic contamination and water damage.

Advanced Filtration Performance

• 2-Micron Absolute Filtration: Achieves fine particulate retention () with an optional 12-micron element available for coarse pre-filtration.
• High-Efficiency Coalescing: Eliminates free water at 99.6% efficiency and emulsified water at 99.2% efficiency in a single pass (up to 5,000 ppm water).
• Low System Restriction: Operates at low clean pressure drop levels (typically 85 mbar clean restriction) to prevent fuel delivery starvation.
• Flexible Installation: Suitable for placement on either the pressure or suction side of a pump with a design pressure rating of 5 bar (tested up to 7.5 bar).

Heavy-Duty Construction & Configurations Constructed with durable steel filter housings painted in standard blue (RAL5010), the W-FCF range offers options for varied operational requirements:

• Simplex Units: Compact single-housing units for flow rates from 15 l/min to 100 l/min.
• Duplex & Monitored Assemblies (DX/DXM): Dual-housing systems featuring changeover capability for uninterrupted service during filter changes. Monitored versions (24V DC) include volt-free contacts for remote service and water-drain alarm outputs.
• Double / Twin-Bodied Units: Parallel-body designs for high-capacity applications supporting flow rates up to 200 l/min.

Integrated Monitoring & Maintenance Features Every unit features built-in water drain valves on the bottom, top air-bleed ports, dual M18×1.5 ports for optional water-in-fuel sensors, and four 1/8" NPT-F condition monitoring ports for direct mounting of differential pressure transducers or adjustable service switches.
